Product Description
Robustel R1510 is a compact industrial LTE Cat-4 router designed to provide reliable IP connectivity for space-constrained IoT deployments. Dual Ethernet (LAN + WAN) and optional 2.4 GHz Wi-Fi give flexible backhaul choices, while automatic WAN failover helps maintain service continuity when a primary link drops.
Built on RobustOS, the R1510 supports familiar networking features with a clean web UI and a C/C++ SDK for application-specific extensions without changing your upstream systems.
A small footprint and wide DC input suit cabinets, kiosks, ticketing and signage enclosures where dependable connectivity, not extra hardware, is the priority.
KEY FEATURES
- Highly stable 2G/3G/4G cellular connections
- Ethernet, Wi-Fi, and 4G internet connection options with auto-failover capability
- Free cloud management platform - RCMS
- Fully programmable Linux environment with comprehensive SDK documentation
- RobustVPN feature provides a fixed IP address on any SIM card
- Full SMS control for diagnostics and recovery from data network issues
- Compact design ideal for space-constrained applications
- Wall-mount and DIN-rail mounting options available
SPECIFICATIONS
Hardware System
CPU MIPS, 650 MHz
RAM 128 MB
Flash 16 MB
Cellular Interface
Number of antennas 2 (MAIN + AUX)
Connector SMA-K
SIM 1 x Mini SIM (2FF)
Ethernet Port
Number of ports 2 x 10/100 Mbps
2 x LAN or 1 x LAN + 1 x WAN
Magnet isolation protection 1.5 KV
Digital Input/Output Port
Number of ports 1 x DI (wet contact) + 1 x DO (wet contact)
Connector 3-pin 3.5 mm female socket
Absolute maximum VDC 30 V DC (DI/DO)
Absolute maximum ADC 20 mA
Wi-Fi Interface
Number of antennas 2 (1 x external antenna + 1 x PCB antenna)
Connector RP-SMA-K (external antenna)
Standards 802.11 b/g/n, supporting AP and Client modes
Frequency bands 2.4 GHz
Security WEP, WPA, WPA2, WPA3
Encryption 64/128 AES, TKIP
Others
Reset button 1 x RST
LED indicators 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN
Watchdog Built-in
Power Supply and Consumption
Connector 2-pin 3.5 mm female socket
Input voltage 12/24 V DC, 9 ~ 36 V DC
Reverse polarity protection, surge protection
Power consumption Idle: 1.5 W@12 V
Max: 6.0 W@12 V
Recommended pwr supply 12 V DC/1.0 A power adapter
Physical Characteristics
Ingress protection IP30
UL 94 V-0, 5 VB
Housing & Weight Plastic, 150 g
Dimensions 31.5 x 91.5 x 91.5 mm

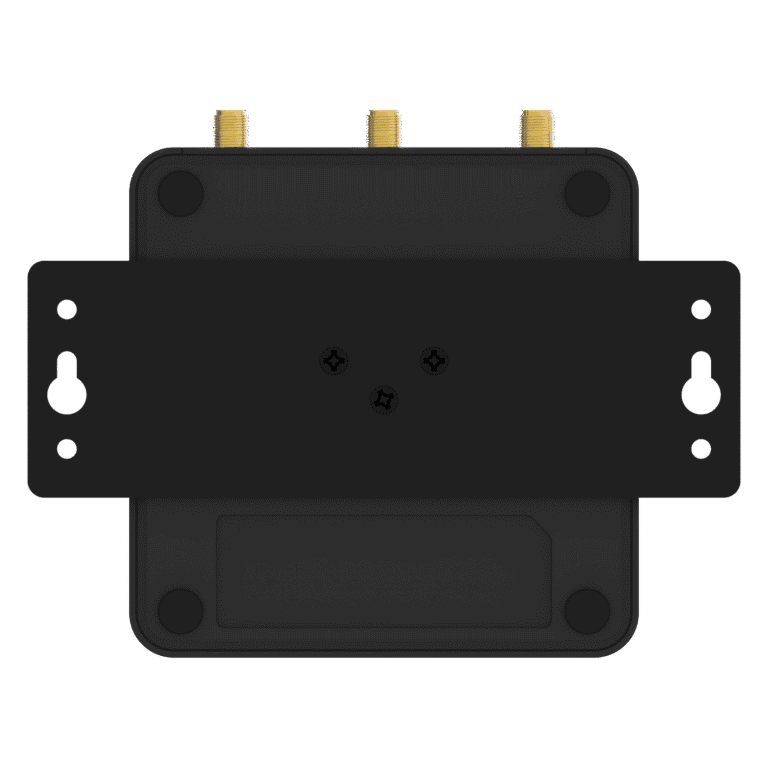

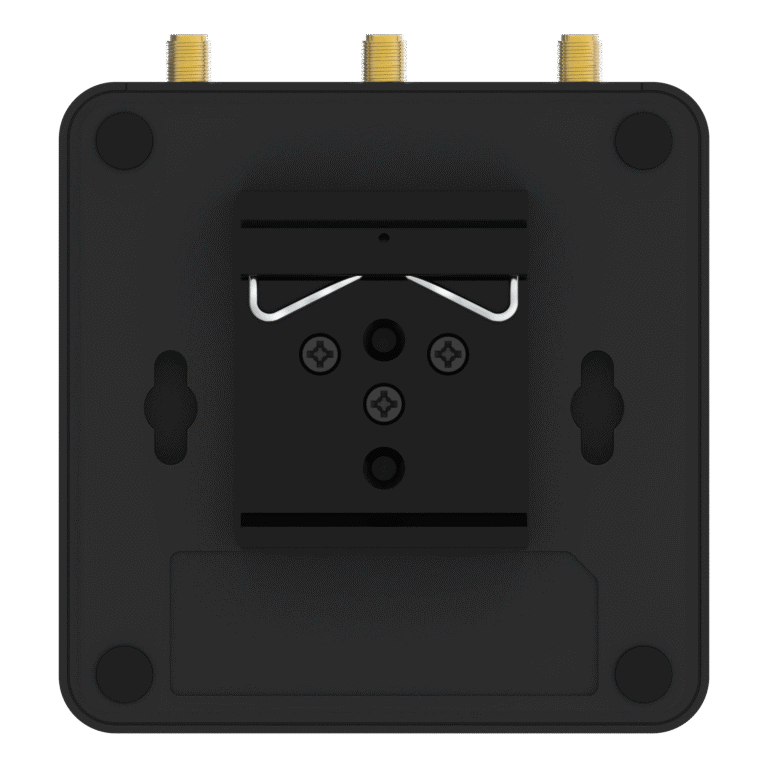

Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -25 ~ +70 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH (non-condensing)
Software (Basic features of RobustOS)
Network protocols PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet,
VLAN, SSH2, DDNS, etc.
VPN tunnels IPsec, OpenVPN, GRE, WireGuard
Firewalls DMZ, anti-DoS, Filtering (IP/Domain name/MAC address),
Port Mapping, Access Control
Remote management Web, CLI, SMS
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
SDK
Supported languages C, C++
Flash available for SDK 4 MB
RAM available for SDK 64 MB
App Center (Available Apps for RobustOS)
Apps* L2TP, PPTP, DMVPN, VRRP, Captive Portal, WLAN Multi AP,
SNMP, Language, RCMS, etc.
Cloud Platform
Robustel Cloud Manager Service (RCMS) RobustLink, RobustVPN, Operation Console
Regulatory and Type Approvals
Environmental RoHS2.0, WEEE
EMI EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class B
EMS EN 61000-4-2 (ESD) Contact Level 2, Air Level 3
EN 61000-4-3 (RS) Level 2
EN 61000-4-4 (EFT) Level 2
EN 61000-4-5 (Surge) Level 3
EN 61000-4-6 (CS) Level 2
